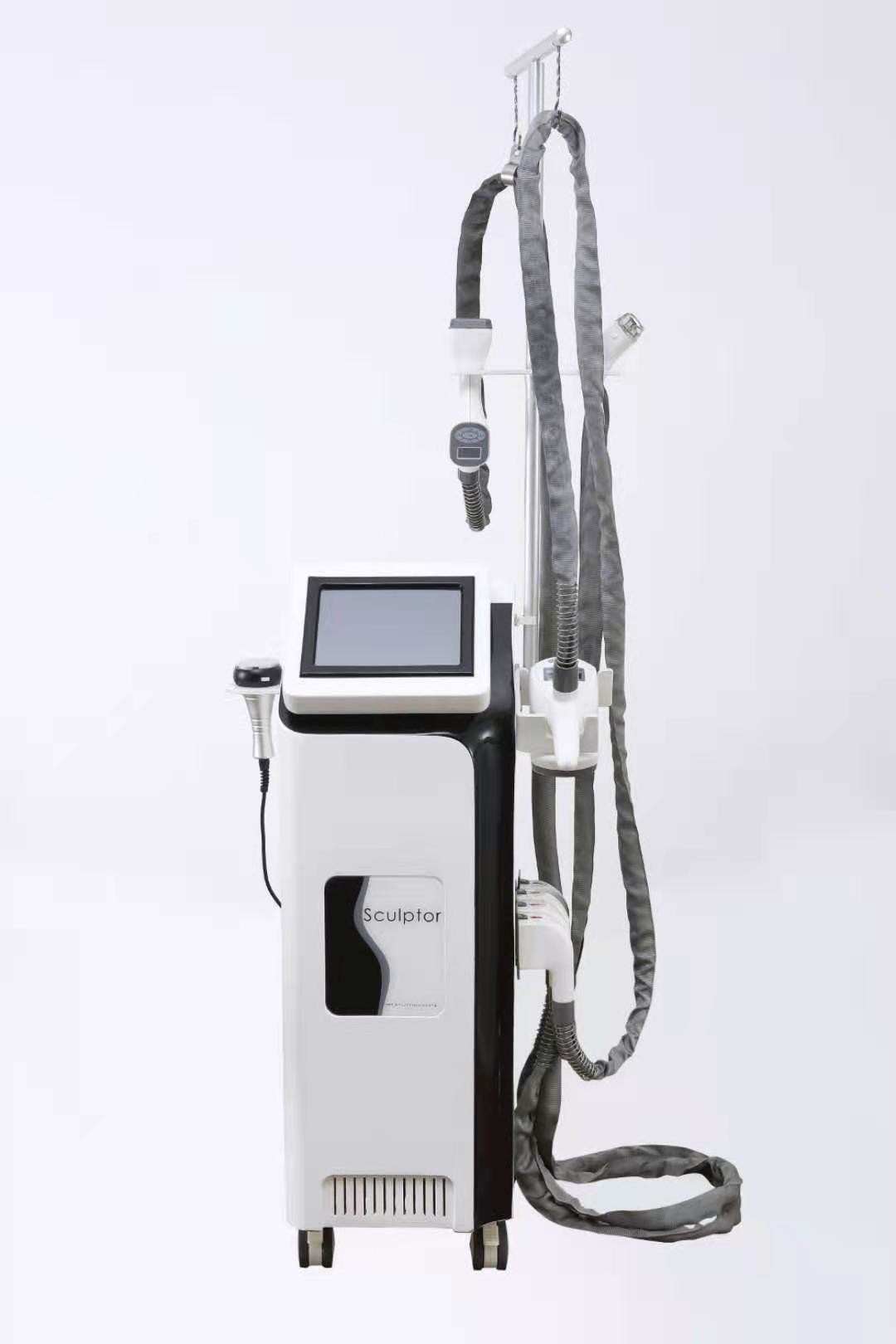

RF Ultrasonic Vacuum Cavitation Machine 1MHZ To 5MHz

RF Ultrasonic Vacuum Cavitation Machine 1MHZ To 5MHz

Product Details:

Place of Origin: China
Brand Name: WALI
Certification: CE
Model Number: 3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: US$3000-4000
Packaging Details: 119*77*64 Wooden packing
Delivery Time: 7-10 work days
Supply Ability: 1 set per 7 days
Get Best Price Contact Now

Detail Information

Type: Weight Loss Machine Warranty: 1 Year
Technology: Vacuum+Cavitation+ RF Working Theory: RF,Infrared Laser,Vacuum,Roller
Feature: Weight Loss, Other, Skin Tightening, Cellulite Reduction After-sales Service: Rovided: Free Spare Parts, Online Support
Handles: 5 Handles Voltage: 110V-240V
Package Size: 119*77*64
High Light:

1MHZ Vacuum Cavitation Machine


Ultrasonic Vacuum Cavitation Machine


5MHz rf ultrasonic cavitation machine

Product Description

CE approved Vacuum Cavitation Roller RF LED IR 3 Slimming Vacuum RF Roller Machine


1. What is the machine


Vacuum roller Bodyshaping is the popular technology on market. It is a new non-invasive treatment that uses a combination of technologies to contour your body and reduce the appearance of cellulite. Vacuum technology manipulates your skin while infrared light and bi-polar radio frequency energies gently heat fat cells and surrounding tissue.

After 3-6 treatments, patients typically notice a reduction in both circumferences and in the appearance of cellulite in the treated areas. The surface of the skin will feel smoother and firmer, too. Some patients see results after their first visit, and in its clinical trials, Bodyshaping led to a reduction of one full dress size after a series of treatments. Fast slimming, Cellulite Reduction,safe, and no pain.


2.Technical Specifications

LCD screen

1) Display screen: 10.4 inches touch screen

2) Display screen of the handpiece

The display screen on handpiece 1: 2.4″

Display screen on handpiece 2: 1.9″

Working mode Pulse
Pulse width 0.5s-7.5s
Negative pressure

1) Absolute value: 80kPa -10kPa (60.8cmHg - 7.6cmHg)

2) Relative value: 20kPa -90kPa (15.2cmHg – 68.4cmHg)

Rev of roller 0-36 rpm
RF frequency 1-5MHz
Treatment area 4mmx7mm,8mmx25mm,30mmx50mm,40mmx60mm
Packing size 119*77*64cm
Rated input power 750VA
Packing list

No. 1 big vacuum RF laser head for body * 1

No. 2 vacuum RF laser head for arms * 1

No. 3 vacuum RF laser head for face * 1

No. 4 small vacuum RF laser head for eyes * 1

40K cavitation head * 1

Power cord * 1

Rotary knob screws * 12

Acrylic accessories hanging rack * 2

Aluminum holder * 1

Acrylic accessories hanging rack screws * 6

Clothes for treatment * 2


3. The machine employs four technologies include infrared, bipolar rf, vacuum, massage mechanism

1. Infrared light heats the tissue up to 5mm depth.

2. Bipolar radiofrequency(RF) heats tissue from 2 to 20mm depth.

3. Vacuum + Massage mechanism accelerates blood circulation and increases blood flow, so as to drain the excess water and body waste.

4. 40Khz focused ultrasound cavitation effect, to cause tones of microscopic air bubbles to surround the lipocyte(fat cell) membranes and with its resonant frequency, the bubbles cause a high energy pressure to cause the fat cells to break. up




RF Ultrasonic Vacuum Cavitation Machine 1MHZ To 5MHz 0



RF Ultrasonic Vacuum Cavitation Machine 1MHZ To 5MHz 1

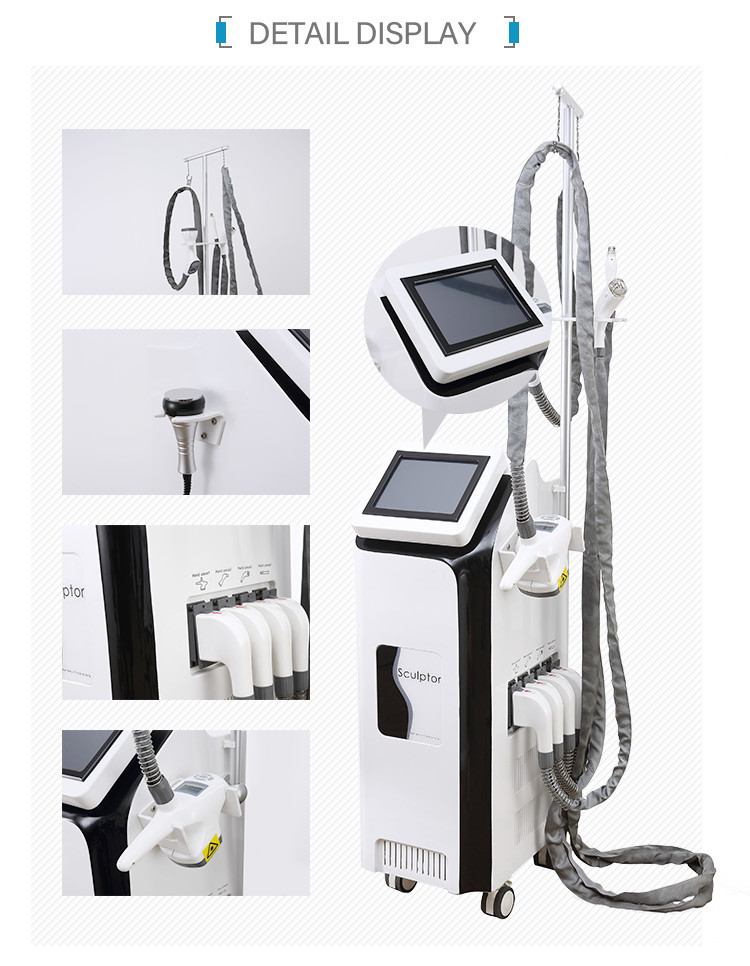

4.The details of Machine


RF Ultrasonic Vacuum Cavitation Machine 1MHZ To 5MHz 2


5.  About the screen of the handle


a. Convenient 10-treatment protocol;

b. Ideal slimming device for circumference reduction;

c. Visible results in as few as 1 treatment session;

d. Treat an average size abdomen, buttocks or thighs in 20 minutes;

e. Offers treatment as comfortable as human massage with specially designed vacuum and roller;

f. Delivers optimal results for treating both the deeper tissue and skin's surface.

RF Ultrasonic Vacuum Cavitation Machine 1MHZ To 5MHz 3


6. How its effect and functions?



1. body shaping, body slimming, fat reduction

2. body circumference reduction,

3. cellulite reduction,

4. skin tightening, Skin lifting for the whole body

5. wrinkle removal, face lifting

6. skin surface smooth

7.700nm infrared light for promotion of cell metabolism, increase skin elasticity

8. Body Contouring, massage

9. Improvement of blood circulation

Mechanical Manipulation (Vacuum +/- Massage mechanism)
- Stimulates lymphatic and blood circulation
- Facilitates fibroblast activity
- Reduces viscosity of fat cell clusters
- Promotes vasodilation and extravasation of oxygen and nutrients
- Enables heating at different depths
- Vacuum roller message


Heating (infrared + radiofrequency energies)
- Enhances blood circulation and increases oxygen dissociation from oxyhemoglobin
- Facilitates fibroblast activity
- Increases metabolism of fat cells
- Improves skin texture
- Fat melting
- RF vacuum fat liposuction


RF Ultrasonic Vacuum Cavitation Machine 1MHZ To 5MHz 4RF Ultrasonic Vacuum Cavitation Machine 1MHZ To 5MHz 5

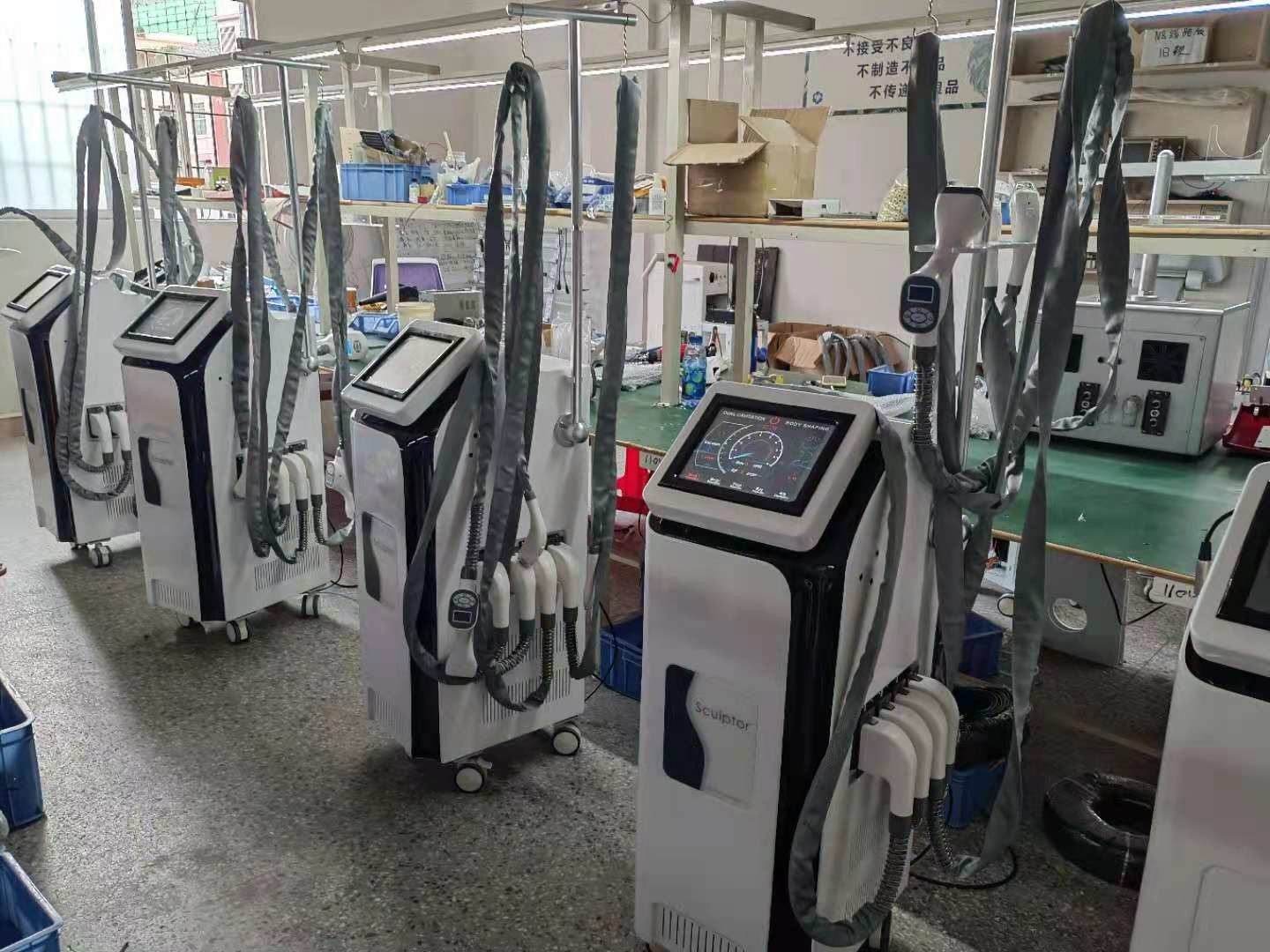

7. What about our factory?

RF Ultrasonic Vacuum Cavitation Machine 1MHZ To 5MHz 6
