The SHR handle consists of a (1) Cable housing: this contains the power cable, liquid coolant tubing, control data cable; (2) SHR
head: this houses the control switch, flash lamp, sapphire crystal,filter piece and electronic semi-conductor cooling system.
Pressing on the trigger on the SHRtreatment head discharges the flash lamp at the settings as displayed on the control panel.
Pushing down the foot switch like-wise discharges the device (on selected models only). The supplied sapphire crystal measures
12mm x 30 mm and is superior in both clarity and longetivity, thereby increasing both the efficiency of the flash lamp and
lifespan of the treatment head. It is very important to keep the sapphire crystal clean. Make sure to clean this with a soft cloth
after each treatment. A disinfectant such as alcohol can be used between treatments. Dried gel on the crystal filter will reduce
efficiency of the flash lamp. Replace the plastic guard over the filter to prevent damage. In the event that the sapphire crystal
is damaged (i.e. nicked or cracked) contact your dealer immediately.
All Products
-
Diode Laser Hair Removal Machine
-
Triple Wavelength Laser Hair Removal
-
IPL Hair Removal Machine
-
HIFU Machine
-
CO2 Fractional Laser Machine
-
PDT Machines
-
Picosecond Laser Machine
-
Microneedling Machine
-
EMS Body Sculpture Machine
-
Radio Frequency Equipments
-
Cryolipolysis Machine
-
Anti Wrinkle Machines
-
Vacuum Roller Slimming Machine
-
Oxygen Jet Machine
-
Microdermabrasion Machine
-
Laser Lipolysis Machine
Contact Person :
Alesa Yan
Phone Number :
+8613115763260
WhatsApp :
+8613115763260

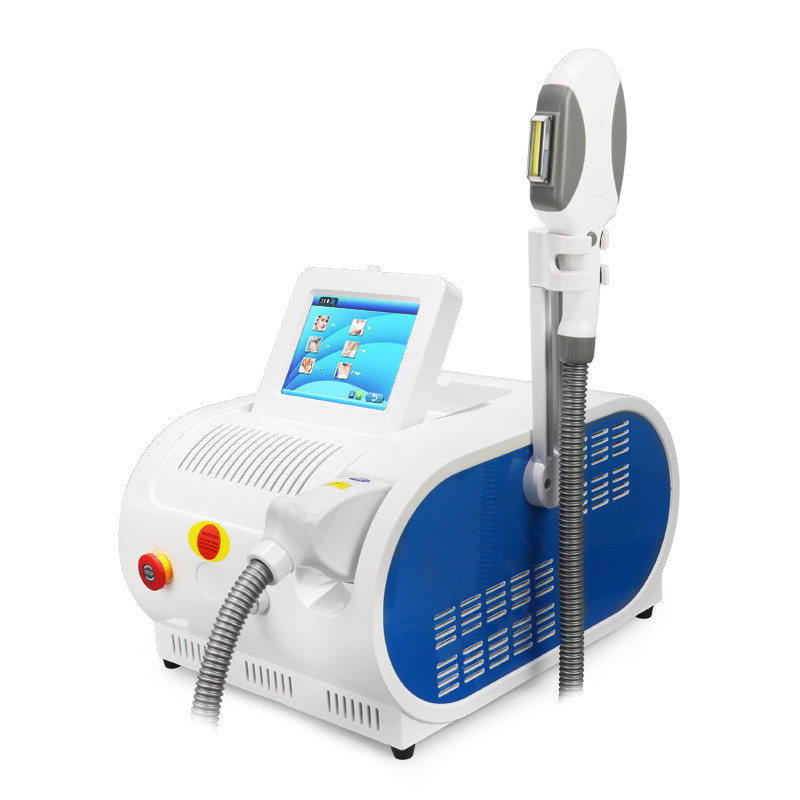

Portable 430nm To 1200nm Elight IPL Machine Hair Removal
| Place of Origin | China |
|---|---|
| Brand Name | WALI |
| Certification | Medical CE, CE Certificate, ISO13485, SGS, FDA Pending |
| Model Number | WALI-100 |
| Minimum Order Quantity | 1 SET |
| Price | USD$2500-5600/set |
| Packaging Details | 55*56*120 |
| Delivery Time | 10-15work days |
| Payment Terms | Western Union, T/T |
| Supply Ability | 1set per 10days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Portable 430-1200nm Ipl Beauty Equipment E Light Ipl Hair Removal With FDA CE | Color | White And Bule |
|---|---|---|---|
| RF Energy | Up To 50W | Type | IPL, Multi-Function Beauty Equipment, Stand |
| Spot Size | 15*50mm2, 15*50mm Or 12mm* 30mm, 47*21mm 20*10mm, 12*30mm, 15*50 Mm | Feature | Hair Removal, Skin Rejuvenation, Pigment Removal, Acne Treatment, Wrinkle Remover |
| Supply Ability | 800 Units Per Month | Packaging Details | Aluminium Packing Box |
| Highlight | 1200nm elight ipl machine,430nm elight ipl machine,Portable elight hair removal |
||
Product Description
Portable 430-1200nm ipl beauty equipment e light ipl hair removal with FDA CE
How it works?
IPL (Intense Pulsed Light ) is a non-invasive skin treatment that emits powerful bursts of light energy to treat unwanted hair, sun damaged skin, and wrinkles, etc. without damaging the surface of your skin. IPL systems use flash lamps to emit micro pulses of light across a broad band of visible wavelengths. By using gentle pulses of light momentarily to create heat, IPL can permanently disable hair follicles, preventing future growth. The melanin in the hair (which gives its colour) absorbs the light, which is then converted into heat. This heat is transferred to the growth cells surrounding the root of the hair, disabling them.
Similarly, IPL also achieves excellent long term results when treating thread veins, skin pigmentation, acne and other skin complaints.
Technical Specifications
| Wavelength (Spectrum) | 530/640-1200nm (standard)●430/480/560/590/690/750-1200nm (optional) |
| Energy Density (Fluence) | 1-50J/cm2 |
| Spot Size | 12x33mm² (standard)●15x35mm²; 15x50mm² (optional) |
| Pulse Repetition Rate | 0.2Hz; 2Hz |
| Pulse Duration | 0.5-15ms |
| Pulse Delay | 1-50ms |
| Pulses | 1-10 pulses |
| IPL Peak Power | 1200W |
| Cooling |
Continuous Crystal contact cooling (-4℃~4℃ ) + Air cooling + Closed water circulation cooling |
| Stand-by Working | Continuously for 12 hours |
| Display | 7" True Color LCD Touch Screen |
| Electrical Requirements | 100-240VAC, 20A max., 50/60Hz |
| Net Weight | 22 kgs |
| Dimensions (WxDxH) | 44*50*32cm |
Unique Advantages
1) 6 Treatment programs, 12 languages available
2) 3 Spot Sizes for option (12*33mm,15*35mm,15*50mm)
3) "Plug & Play" Technology
How to treatment
Start with a low fluence (i.e. 25 J/cm 2 ). Do a test shot in an inconspicuous area. Evaluate patient response then gradually increase the fluence by increments of 3 J/cm 2 when a fluence of around 30 J/cm 2 is achieved, increase by increments of 1 or 2 depending on patient’s response. We strongly recommend that for the 1st treatment, the fluency level be set initially at least 8 to 10 joules/sq cm. below the suggested level of treatment parameter sheet. Please note that treatment over bony areas such as the malar area, forehead and shins produces more discomfort so reduce the fluence by 2-3 joules. When treating very densely pigmented areas reduce fluence by 2-3 joules.
IPL handle:
