10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal

Place of Origin China
Brand Name WALI
Certification CE ISO
Model Number WL-CL100
Minimum Order Quantity 1 set
Price US$3500-US$6000 per set
Packaging Details 45*80*120 Aviation aluminum box
Delivery Time 10-15 days
Payment Terms Western Union, T/T
Supply Ability 1000sets per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name 10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal Feature Co2 Fractional Laser
Functions Scar Removal Wavelength 10600nm
After-sales Service Provided Video Technical Support, Field Installation, Commissioning Spot Size 0.02~0.05mm2
Distance 0.1-2.6mm Input Voltage 110V-250V
Output Power 30w;40w
High Light

Air Cooling co2 fractional laser equipment


10.64um co2 fractional laser equipment


Scar Removal stretch mark machine

Leave a Message
Product Description

10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal


CO2 Fractional Laser Scar Removal Machine Theory


Co2 Fractional laser system adopts the international advanced microlens technology, which can make the laser system produce a large number of tiny ultra-pulsed beams. These ultra-pulsed beams can form tiny holes with a diameter of 0.12 mm to 1.2 mm and a depth of 2 mm on the skin after acting on the skin tissue.As a result, the skin forms a large number of micro-thermal zones) and heat accumulation area or microscopic heating area, can form on skin pigment group partition of gasification, the accumulation of additional heat in genuine leather, can make skin collagen produce immediate contraction function, and can stimulate collagen hyperplasia for a long time, so as to achieve tender skin and wrinkles, remove scar, solve the skin problems such as abnormal pigment effect.This kind of fractional treatment (fractional), can make the skin wound heal in a short time, through the natural repair of the human body, replacement defect damaged tissue, so as to produce new healthy tissue.


Technical Specifications:

Wavelength 10.64um
Power Output 1-40W
Laser Type UltraPulse; CW; Fractional
Spot Size 0.12mm & 1.25mm (adjustable)
Spot Density Up to 102400 dot
Scan Size Up to 20x20mm
Scan Shapes Square; Rectangle; Circle; Triangle; Rhombus; Ellipse; Line
Beam Patterns Standard; Random; Scatter
Aiming Beam 5mW red diode laser, 635nm, adjustable intensity, blink on/off
Beam Delivery Articulated 7-joint arm with up to 360° rotation
Cooling Self-contained, closed cycle
Stand-by Working Continuously for 18 hours
Display 10.4" True Color LCD Touch Screen
Electrical Requirements 100-240VAC, 20A max., 50/60Hz




1. Laser resurfacing surgery
2. Laser wrinkle removal surgery
3. Laser scar removal surgery
4. Laser blepharoplasty
5.Other applications: Removal of pimented naevus, chloasmas, freckles, age pigments, warts, seborrheic keratosis, syringoma, acnes, milia, striae gravidarum; Pore shrinkage; Skin tightening; Laser hairtransplant; Laser breast augmentation and etc.


Advantage :


1. Simple operation, efficient and safe treatment, no need to rest after the operation, does not affect work.
2. It can treat all parts of the body, with good effect, wide disease source and rich income.
3. International new technology, with a large amount of clinical experience accumulated light based cosmetic means.
4. The output high energy of this machine can reach 80MJ, which is higher than similar products.
5. The machine is composed of host and handle. The company keeps the erbium glass laser with original performance but miniaturization, and integrates it into the handle, which not only saves the loss of optical fiber transmission, but also is very easy to maintain.
6. The main components are imported from abroad, and a lot of innovations have been made in the structure, and the technical performance has reached the international advanced level.When changing the lamp, just send the handle back to the manufacturer without changing the main machine.
7. Non-stripping treatment, no pain, short time, no adverse reactions, especially suitable for young and middle-aged people.
8. The machine has three different density microbeam array outputs.They can be easily replaced on the handle.For each point density, a variety of point energy levels are set up to provide tailored treatment for different lesions, so as to achieve satisfactory therapeutic effects.
9. This machine adopts single board control, 10.4 inches full-color large screen display.Equipped with a soft keyboard to enter the patient's case number.

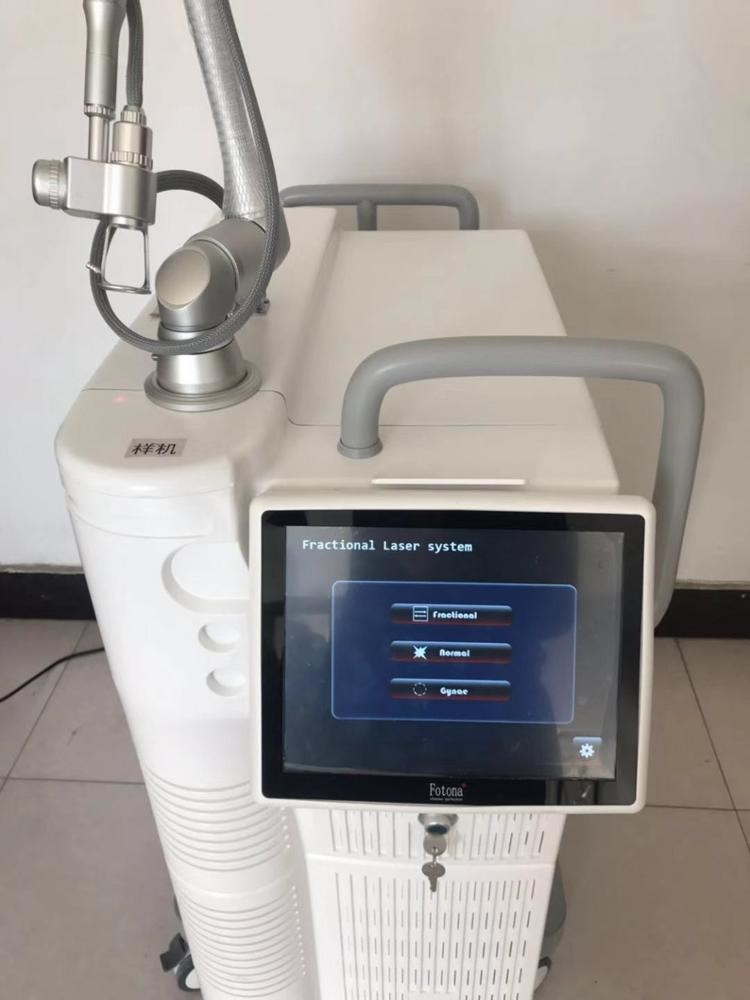

10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal 0

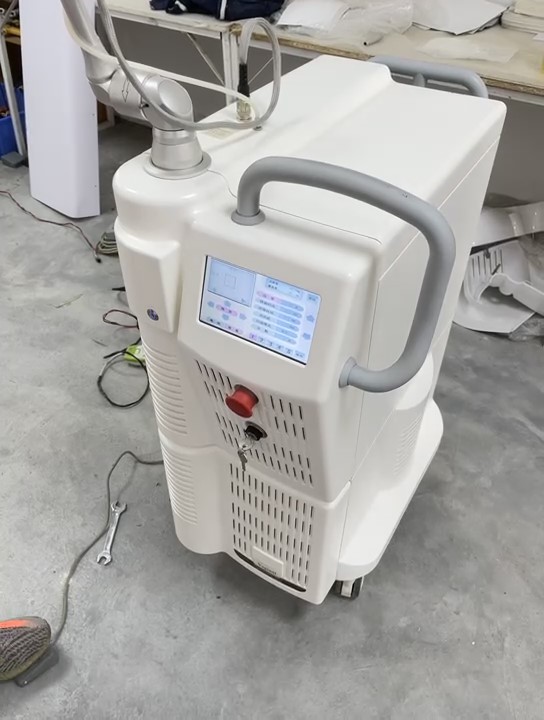

10.64um Air Cooling Co2 Fractional Laser Equipment For Scar Removal 1
