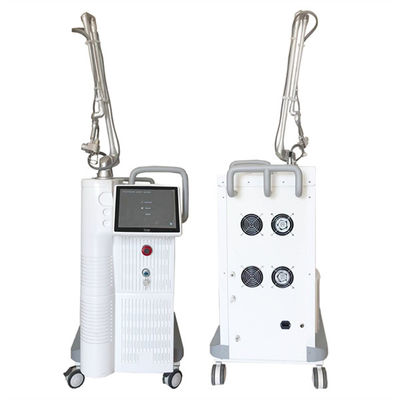

10600nm 30W Co2 Laser Resurfacing Machine 220V For Scare Removal Shrink Large Pores

Place of Origin China
Brand Name WALI
Certification CE ISO
Model Number WL-CL100
Minimum Order Quantity 1 set
Price US$3500-US$6000 per set
Packaging Details 45*80*120 Aviation aluminum box
Delivery Time 10-15 days
Payment Terms Western Union
Supply Ability 1000sets per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 10600nm CO2 Fractional Laser Beauty Machine For Scare Removal Shrink Large Pores Wavelength 10600nm
Feature Scare Removal Shrink Large Pores After-sales Service Provided Video Technical Support, Field Installation, Commissioning
Spot Size 0.02~0.05mm2 Distance 0.1-2.6mm
Input Voltage 110V-250V Output Power 30w;40w
Highlight

10600nm co2 laser resurfacing machine

,

30W co2 laser resurfacing machine

,

220V fractional co2 laser machine

Leave a Message
Product Description

10600nm CO2 Fractional Laser Beauty Machine For Scare Removal Shrink Large Pores



ADVANTAGES:

1. Three modes of laser energy output are selective:Ultrapulse, CW and Fractional modes.
2. Adopt COHERENT RF-excited laser system enables the output quality more stable, more uniform, more consistent.(compared to ordinary CO2 laser installed with glass tubes)
3. Healing zone volume is adjustable, namely the volume of spots is adjustable in a certain healing zone.Therapists could adjust the spot density upon skin type, lesion parts and effectiveness requirement of different patients.
4. Various spot volumes are suitable for different area of the body which maximally avoid the side-effect that result from the overlap of the spot, reduce the pain during treatment, satisfy different therapists' unique request.
5. 12.1"TFT touch LCD, rotated 360 gives you a luxury enjoyment.
6. Reserved entry access for laser room ensures a safe treatment.
7. Comparing with existing traditional CO2 Sealed Glass Laser, RF excited CO2 lasts nearly permanently, therefore it deserves a higher initial cost which well be offset by a much lover total cost of ownership.
8. Variable focus tips can adust from 50um-2000um spot size which meet the need of surface or deep ablative of skin.



SPECIFICATION:

Laser Type
Wavelength 10600nm
Beam Delivery 7 Articulate arm.
Maximum Output Power 30W
Optical Beam Quality TEM
Spot Size 80um-2000um
Power Of The Aiming Beam ≦5mW
Aiming Beam 635nm
Scanning Mode Randomized Scanning
Laser Operating Mode UltraPluse, CW, Fractional
Cooling Air Cooling
Pulse Energy 20mj-200mj(stepping :2mj)
Pulse Interval 1ms-100ms(steping:1ms)
Scan Area 1*1cm², 2*2cm², 3*3cm²
Power Supply AC 220V 50Hz/ AC 110V 60Hz
Dimensions (After Packaged) 109cm*60cm*115cm
Net Weight 50KGS



Treatment Theory

Fractional laser light penetrates the skin with tiny thermal channels through the random scanning. This creates an ablative and thermal effect on only these channels (a micro-injury) without damaging the surrounding tissue. The tissue surrounding the micro-injury sites (about 15-20% of the treatment area) starts the process of healing. As collagen remodels, skin tightened, scars improved and pigmented lesions removed.





Application

I Application Range of Fractional treatment handpiece:

1. Large pores, Fine lines, Skin tightening and whitening , Skin loosen (Deep Wrinkles), Stretch marks.
2. Various Scars: Burn Scars, Acne Scars, Surgical Scars and Keloid. Pigmented skin lesions: Chloasma, Freckles, Age spots, Sun spots, CAMLS.
3. Reconstruction of photoaging skin.

II Application Range of Incision Handpiece:

1. Via multiple handles it can be adapted to Gynecology, ENT, Neurology and general surgery.
2. In Cosmetic Surgery, it can be adapted to incisions for Blepharoplasty, Skin Tags and ingrown Nails, Compound Nevus and Intra Dermal Nevus etc.

10600nm 30W Co2 Laser Resurfacing Machine 220V For Scare Removal Shrink Large Pores 0

Treatment Theory

Fractional laser light penetrates the skin with tiny thermal channels through the random scanning. This creates an ablative and thermal effect on only these channels (a micro-injury) without damaging the surrounding tissue. The tissue surrounding the micro-injury sites (about 15-20% of the treatment area) starts the process of healing. As collagen remodels, skin tightened, scars improved and pigmented lesions removed.
